Editing Map Events

Events are what bring your maps to life. They include NPCs, signposts, warps, scripts, and more. Open the Events tab above the map area, and let’s dissect what’s going on.

Map Events View

Map Events View

All of the events are visible on the map. The Event Details window on the right displays the properties of the currently-selected event. If you look closely, you’ll see that the woman NPC near the Pokémon Center has a pink border around it because it’s selected. To select a different event, simply click on an event in the map area. Multiple events can be selected at the same time by holding Ctrl (Cmd on macOS) and clicking another event. Alternatively, you can use the spinner at the top of the event properties window to cycle through events.

Event Id Spinner

Event Id Spinner

Warning

There is currently no undo/redo functionality when editing information in the Event Details window! Use Git version control!

Adding & Deleting Events

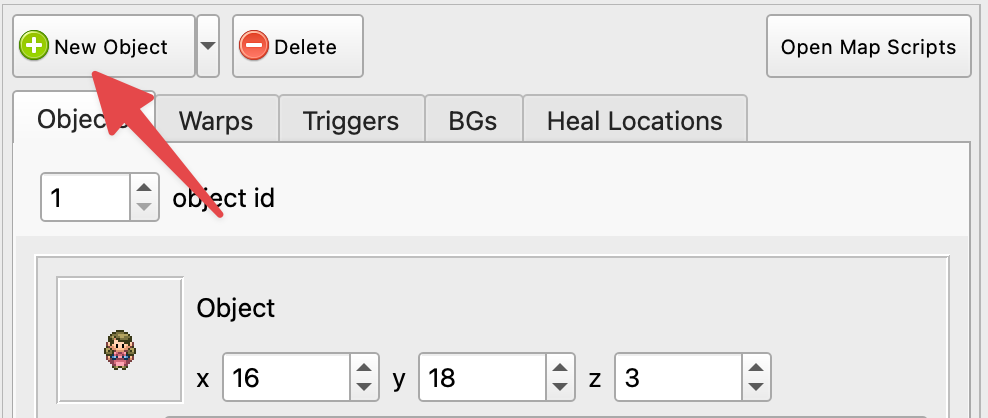

To add a new event, press the green plus button. You can choose between the different types of events by clicking the small arrow on the right side of the button. You can also duplicate any currently selected events with Ctrl+D.

Add Event Button

Add Event Button

To delete the selected event, press the delete-event-button button.

Event Positions

All events have X/Y coordinates. To move an Event, click and drag it to a new position on the map. Alternatively, you can use the X and Y spinners in the event properties.

Event Coordinates Spinners

Event Coordinates Spinners

Events also have an elevation, also known as Z coordinates (see image above). Elevations are explained in detail in the Collision Types section.

Next, we’ll cover each type of event in detail.

Object Events

Object events are typically used for NPCs (non-player-characters). More technically, it’s any event that has a sprite and the ability to move around. Object events are displayed using their assigned sprite, except for special cases. Any object event that uses a dynamic sprite (like berry trees) or that Porymap doesn’t recognize will be displayed as a blue square with an N dynamic-sprite.

Object Event Properties

Object Event Properties

Local ID

This is an optional field. Here you can give a unique name to your event so that you can refer to it elsewhere. If the event has no ID name, you can still refer to it using its number ID instead (the number next to the spinner at the top of the window).

For example, if you give this object event a Local ID name of LOCALID_MY_NPC, you could write in a script applymovement LOCALID_MY_NPC, MovementScript, or applymovement 1, MovementScript, and either one would apply to this event. The benefit of using LOCALID_MY_NPC over 1 is that if the number changes you won’t have to update your scripts at all!

Sprite

The sprite that is used by the object.

Movement

The movement type used by the object during normal gameplay.

Movement Radius X/Y

Movement types that involves walking or moving around the map can be bounded by a radius. The ensures that the object is always within the specified range from its original position.

Script

The script that executes when the player interacts with the event. The dropdown for this field contains all the scripts from the current map and any scripts already in-use by the map’s events. You can enter the name of any script even if it doesn’t appear in the dropdown.

Event Flag

The flag value that controls if the object is visible. If the flag is set (equal to 1), then the object will be invisible. If the flag is not set, or Event Flag is set to 0 (i.e., no flag), then the object will be visible.

Trainer Type

The trainer type used by the object. If the object is a trainer, TRAINER_TYPE_NORMAL means that the trainer will spot the player in the object’s line-of-sight.

Sight Radius or Berry Tree ID

If the object is a trainer, this property control how many spaces away the trainer can see to spot the player for battle. If the object is a berry tree, this specifies the global id of the berry tree. Each berry tree in the game has a unique berry tree id.

Clone Object Events

Clone Object events are a special type of object that inherits its properties from another Object event. They are used in-game to load objects that are visible in the connecting area of adjacent maps. The targeted object to clone is specified by id and map name. If the targeted object does not exist, or it’s also a clone, the sprite for graphics id 0 will be displayed instead. Double-clicking on a Clone Object will open the targeted map with the targeted object selected.

Note

This event type is exclusive to pokefirered projects. If you have modified your pokeemerald/pokeruby project to support this event type, you can enable them under the Events tab of Options > Project Settings....

Clone Object Event Properties

Clone Object Event Properties

Local ID

This is an optional field. Here you can give a unique name to your event so that you can refer to it elsewhere. If the event has no ID name, you can still refer to it using its number ID instead (the number next to the spinner at the top of the window).

Sprite

The sprite that is used by the object. Clone Objects inherit their sprite from the targeted object, so this cannot be edited. This field is not actually read by the game.

Target Local ID

The local id of the object to be cloned.

Target Map

The name of the map the object to be cloned is on.

Warp Events

Warp events are how the player is able to warp to other maps, such as entering a building. Double-clicking on a warp will automatically open the destination map and select the destination warp. This makes it very easy to navigate around in Porymap. Warps need to be on specific metatiles to function as an exit; a warning will appear if the warp event is not on one of these metatiles.

Warp Event Properties

Warp Event Properties

ID

This is an optional field. Here you can give a unique name to your event so that you can refer to it elsewhere. If the event has no ID name, you can still refer to it using its number ID instead (the number next to the spinner at the top of the window).

This is used when setting the Destination Warp property for another warp.

Destination Map

The name of the map to travel to.

Destination Warp

The ID of the warp to travel to.

Trigger Events

Trigger events are scripts that execute when the player walks over them. However, they only execute when a variable is equal to some value. Typically, they execute once, set the variable’s value to something else, and then never execute again because the variable’s value no longer matches.

Trigger Event Properties

Trigger Event Properties

Script

The script that executes when the player walks over the trigger AND when the value of Var equals Var Value.

Var

The variable used to determine if the trigger’s Script should execute.

Var Value

The value that the Var must equal for the trigger’s Script to execute.

Weather Trigger Events

Weather trigger events are a very specific type of trigger. When the player walks over a weather trigger, the overworld’s weather will transition to the specified weather type.

Note

This event type is exclusive to pokeemerald/pokeruby projects. If you have modified your pokefirered project to support this event type, you can enable them under the Events tab of Options > Project Settings....

Weather Trigger Event Properties

Weather Trigger Event Properties

Weather

The type of weather to transition to.

Sign Event

Sign events, or signposts, are simple interactable scripts. They are typically used for things like signs in front of buildings. The player’s facing direction can be required to be a certain direction in order to interact with the sign. Signs are the first of three “BG” event types.

Sign Event Properties

Sign Event Properties

Player Facing Direction

The direction the player must be facing in order to execute the sign’s script.

Script

The script that executes when the player interacts with the event. The dropdown for this field contains all the scripts from the current map and any scripts already in-use by the map’s events. You can enter the name of any script even if it doesn’t appear in the dropdown.

Hidden Item Event

Hidden items are invisible items that can be picked up by the player. They each use a flag to ensure the item can only be picked up once.

Hidden Item Event Properties

Hidden Item Event Properties

Item

The item the player will receive when interacting with this hidden item.

Flag

This flag is set when the player receives the hidden item.

Quantity

The number of items received when the item is picked up.

Exclusive to pokefirered projects. Can be enabled under the Events tab of Options > Project Settings....

Requires Itemfinder

When checked, the hidden item can only be received by standing on it and using the Itemfinder.

Exclusive to pokefirered projects. Can be enabled under the Events tab of Options > Project Settings....

Secret Base Event

This is the event used to mark entrances to secret bases. This event will only be functional on certain metatiles. Unfortunately, they are hardcoded into the game’s engine (see sSecretBaseEntranceMetatiles in src/secret_base.c). Double-clicking on a secret base will open the secret base’s map (assuming Porymap is able to infer which map that is by looking at the Secret Base field).

Note

This event type is exclusive to pokeemerald/pokeruby projects. If you have modified your pokefirered project to support this event type, you can enable them under the Events tab of Options > Project Settings....

Secret Base Event Properties

Secret Base Event Properties

Secret Base

The id of the destination secret base.

Heal Locations

This event is used to control where a player will arrive when they white out or fly to the map. The white out functions a little differently between game versions. For pokeemerald and pokeruby players will arrive at the event’s coordinates after a white out, while in pokefirered they will arrive on the map set in Respawn Map and at hardcoded coordinates (see SetWhiteoutRespawnWarpAndHealerNpc in src/heal_location.c).

Heal Location Properties

Heal Location Properties

ID

The unique ID name of this Heal Location Event. This is the name you’ll use to refer to this heal location in scripts (e.g. setrespawn HEAL_LOCATION_VIRIDIAN_CITY) or elsewhere in your project. Unlike other ID name fields, this name is required and cannot be substituted with the ID number at the top of the window.

Respawn Map

The map where the player will arrive when they white out (e.g. inside the PokéCenter that the heal location is in front of).

Exclusive to pokefirered projects. Can be enabled under the Events tab of Options > Project Settings....

Respawn NPC

The local id of the NPC the player will interact with when they white out.

Exclusive to pokefirered projects. Can be enabled under the Events tab of Options > Project Settings....

Custom Attributes

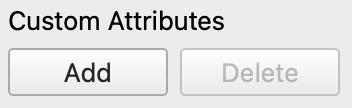

Under each event you’ll also find the Custom Attributes table. This lets you add new data to any event. By default it is empty, and only the Add button is enabled.

Custom Attributes

When you click Add you will be prompted to enter the name of your new data field, what type of data it is, and the value. Once added you can edit their values in the table, or select an entry and click Delete to remove it.

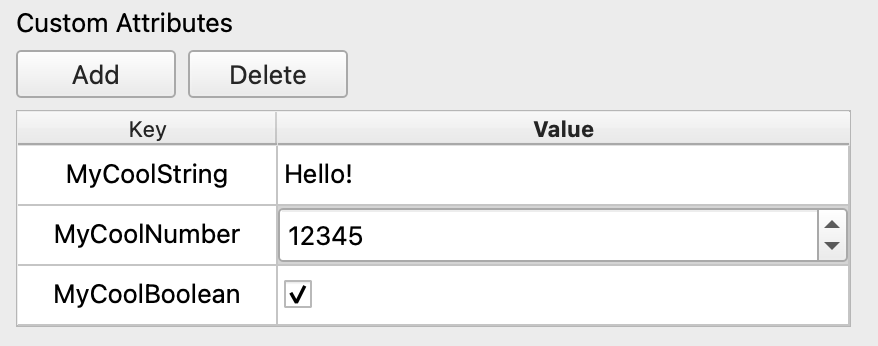

Custom Attributes Table

At the moment our new data has no impact on the game, but we can write code in our project to do whatever we want with it! The new data can be found in the map.json file of whatever map it was added to. Normally these map.json files are handled by a tool in your project called mapjson, so to use your new data you may need to modify this tool.

Open Map Scripts

Clicking the open-map-scripts-button button will open the map’s scripts file in your default text editor. If nothing happens when this button is clicked, you may need to associate a text editor with the .inc file extension (or .pory if you’re using Porycript).

Additionally, if you specify a Goto Line Command in Preferences... then a tool-button will appear next to the Script combo-box in the Events tab. Clicking this button will open the file that contains the script directly to the line number of that script. If the script cannot be found in the project then the current map’s scripts file is opened. go-to-script-button

Tool Buttons

The event editing tab also extends functionality to a few of the tool buttons described in Editing Map Tiles.

Pencil

Clicking on an empty space will create a new event of the same type as your currently-selected event. This is the same as clicking the New Event button except that the new event will be positioned under your cursor. Right-clicking with the Pencil Tool will return to the Pointer tool.

Drawing Object Events with the Pencil Tool

Drawing Object Events with the Pencil Tool

Pointer

The Pointer Tool is the default tool for the event editing tab and allows you to select and move events on the map. The Pointer Tool also gives you access to the Ruler Tool.

Shift

You can use the Shift Tool to move any number of events together. When a selected event is dragged, all other selected events will move with it. When a tile with no event is clicked, all events on the map can be dragged.

Moving Events with the Shift Tool

Moving Events with the Shift Tool

Ruler Tool

The Ruler Tool provides a convenient way to measure distance on the map. This is particularly useful for scripting object movement. With the Pointer Tool selected you can activate the ruler with a Right-click. With the ruler active you can move the mouse around to extend the ruler. The ruler can be deactivated with another Right-click, or locked in place with a Left-click (Left-click again to unlock the ruler).

Measuring metatile distance with the Ruler Tool

Measuring metatile distance with the Ruler Tool

Tip

If you’d like to see your events while editing the map, select View > Show Events in Map View.
